HD Intelligent Pedestrian Detection System
This 1080P HD Intelligent Pedestrian & Vehicle Detection Camera adopts deep learning technology to detect pedestrians and vehicles in front of, on the side of and behind your vehicle. This live-view option warns drivers of potential risks of collision, and improves driving safety.
The cameras can be installed on the side, front and back of a vehicle to intelligently detect pedestrians and vehicles within 20M – in real time.

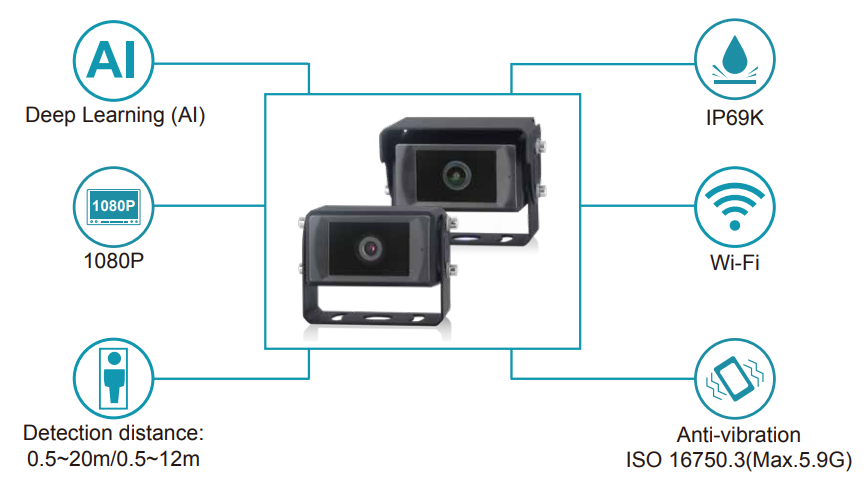

Features:
- Pedestrians & Vehicle Detection and Warning – It can identify pedestrians on foot and vehicles such as cyclists, electric bikers etc. Pedestrian and vehicle detection and warning function.
- High Quality Security Alarms – High definition 1080P video output, with alarming frame, giving timely warnings to drivers.
- Audio Alarm – Supporting audio alarm output, sending real-time alarms to drivers.
- Strong Compatibility – Support AHD/CVBS/100M ethernet output and RTSP, ISO17215 and other network protocols, compatible with central control screens, fit for various vehicle driving and operating scenarios.
- Large Viewing Angle – Side view camera lens: 6mm, 52° horizontally; rear view camera lens: 2.3mm, 130° horizontally. The wide viewing angle can cover and monitor much wider blind spots.
- Waterproof & Shock-Resistant – IP69K waterproof, dustproof, shock resistant and durable in use, offering high quality images
- Other Functions – The USB 2.0 interface can connect to an external wireless WIFI module and USB flash disk; easy calibration done by phones through a web link; should there be the need to upgrade the system, all you need is a USB, very easy to operate.
| Anti-vibration | 5.9G |
| Detection range for both front and side view cameras | 0.5M-20M |
| Detection range for rear view cameras | 0.5M-12M |
| Supply Voltage | DC10V~32V |
| Consumption (12V IN) | 150mA(IR light off) |
| 700mA(IR light on) | |
| Video Format | 25 or 30 |
| Video Output | AHD(1.0Vp-p, 75Ohm) |
| Resolution | 1920 x 1080P |
| Horizontal Viewing Angle | 52°/130° |
| Audio Output | Warning sound signal output |
| Communication Interface | USB 2.0 (for software upgrade) |
| Cable Length | 3M |
| Working Temperature | -20 ~ +70℃ |
| Storage Temperature | -30 ~ +80℃ |
| Waterproof Rating | IP69K |
| Dimension | 95 x 60 x70(mm) |
| Weight | 500g |
| Housing Color | Black |
| Output mode | AHD/CVBS/Fast ethernet |
| Network protocol | RTSP/ISO17215 |
