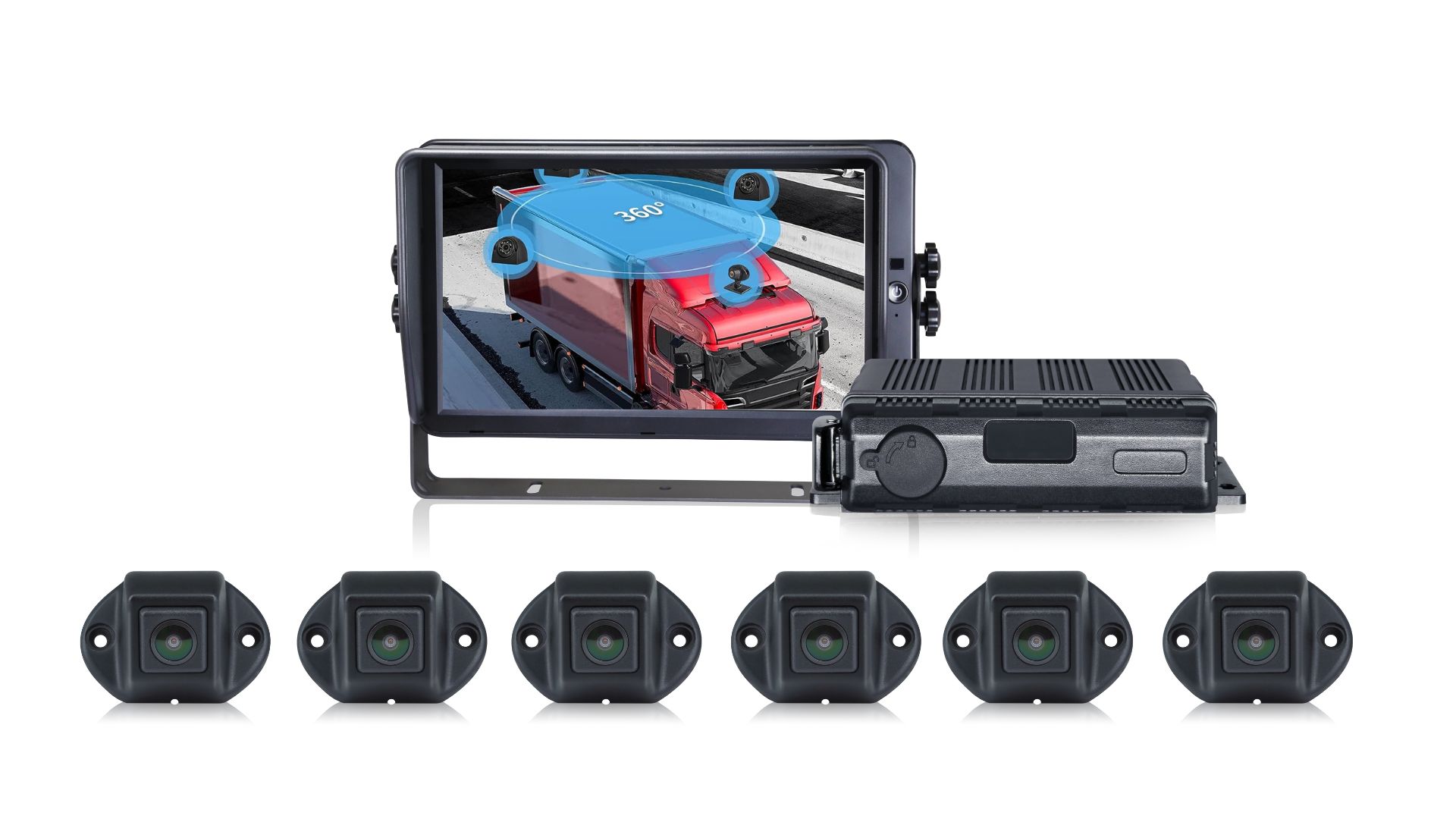

6 Channel 1080P HD Waterproof 360° Surround View Panoramic System
This system has 195° ultra wide angle HD camera input, multiple viewing models with 3D/2D switching perspective. It is specifically designed for longer vehicles – giving 360° monitoring without blind spots. 512GB + 2T SSD large capacity video storage.
Features:
- 【6CH 360° Around View】6CH 360° surround view image system, suitable for all kinds of vehicles
- 【HD Video】1080P high definition fish eye camera input with good real-time display, offering HD and stable images
- 【One-minute Calibration】Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
- 【Surround View & Vehicle Monitoring】Support 360° surround view with 4 channels and other applications with 2 channels
- 【Built-in FCW Function】Additional camera and extra installation are not required, built-in FCW (Front Collision Warning) saving time and effort
- 【Resource Integration】Able to work with Pedestrian Detection Camera. Additionally, radar access is supported and the vehicle is fully protected
- 【Remote Vehicle Management】It can be connected to the platform via 4G to achieve remote vehicle management
- 【Strong Recording function】512GB+2T SSD stores large capacity videos
- 【Waterproof and Dustproof】IP69K waterproof, dustproof and shockproof, able to operate even in harsh environments
- 【Other Functions】Optional capacitive touch screen; trigger wire and GPS access are both supported
360 Degree Surround View Control box:
| Video input | Max.6CH×1080P AHD (25/30)FPS |
| Compatible with 6CH * 720P （25FPS/30FPS） | |
| Video output | CVBS PAL/NTSC |
| AHD/VGA output | |
| RTP/RTSP （1080P/720P/D1 optional） | |
| Output delay | The analog output delay is within 200ms |
| The average delay of RTSP push stream is less than 200ms | |
| Startup with picture | Support fast picture of single channel screen within 3 seconds |
| Display view types | Single channel view of each camera |
| Six split view | |
| 2D panoramic view (original 2D view) | |
| 3D panoramic view at any perspective | |
| Storage | Max. 1×512G SD card+1×2T SSD card |
| Recording | (Default) Max.6CH×1080P H.264 15FPS encoding |
| 6CH 1080P standard input or single-channel splicing composite screen image | |
| Format AVI/MSV | |
| Playback | Advised to use PC software for playback |
| The board supports 6CH simultaneous playback | |
| Code stream | 1MB/2MB/4MB |
| Other bitrate could be customized | |
| Control box dimension | 181.6*146.6 mm |
| Waterproof rating | IP69K |
| Control | Remote control, touch screen (optional) |
| Network | Ethernet WIFI 4G(OPTION) |
| Expanded port | 1. Trigger line*6 |
| 2. TTL | |
| 3. CAN *2 | |
| 4. USB port | |
| Additional G-sensor | Standard: |
| GPS、Acceleration chip | |
| Optional: | |
| Ultrasonic radar, microwave radar, pedestrian detection camera | |
| Power supply | 10-32V |
| Operating voltage range of external trigger signal | 10-32V |
| Operating current | <2A/12V |
| Operating temperature | -20℃ ~ 70℃ |
| Able to be customized up to -40°C~85°C | |
| Storage temperature | –40℃ ~105℃ |
| Operating humidity | 10%-95% |
360 Degree Surround View Camera:
| Resolution | 1080P 720P |
| Output signal | AHD |
| Image Device | CMOS |
| Frame Rate | 25/30 |
| Automatic White Balance | Available |
| Automatic Exposure | Available |
| Night vision | Starlight level |
| Visible when<0.1lux | |
| infrared light is not required | |
| White balance | Automatic |
| Exposure | Automatic |
| Dimension | 62*41.72*34.11 mm Camera's angle cannot be adjusted |
| 74.28*59.16*42.43mm Camera's angle cannot be adjusted | |
| Viewing angle | Recommended for 3D view Horizontal max. 195° Vertical max. 135° |
| Horizontal max. 170° Vertical max. 90° | |
| Power supply | 12V |
| Operating temp. & humidity | –20℃ ~70℃, RH95%MAX. |
| –40℃ ~85℃, RH95%MAX. | |
| either-or | |
| Storage temp. & humidity | –40℃ ~105℃, RH95%MAX. |
| Waterproof rating | IP69K |
| Lens length | 1.45mm |
